EAS PBO A

Membuat Image Editor menggunakan BlueJ.
Nama  : Samuel Marcellinus
NRP : 05111740000134
Kelas : PBO-A

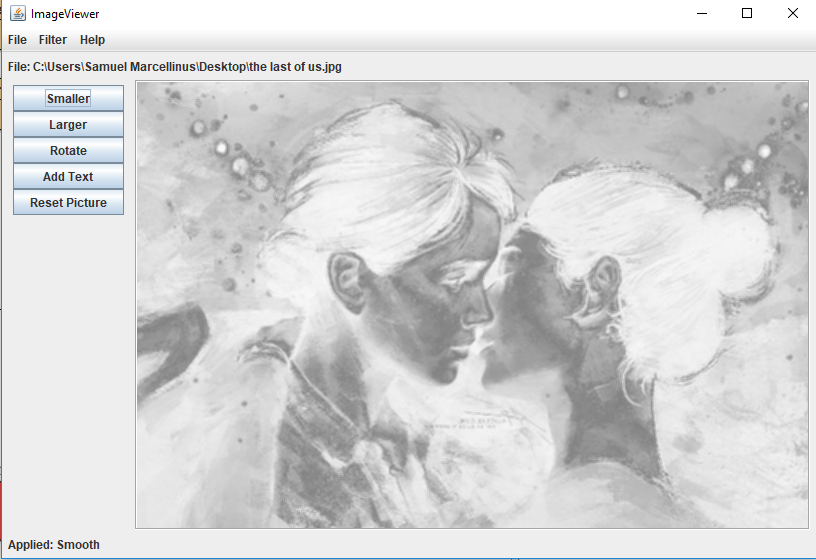

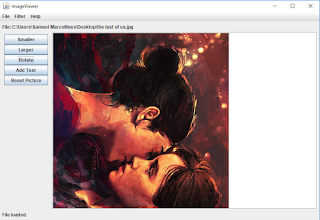

Gambarkan rancangan Interfacenya !


Gambarkan dan jelaskan Class Diagram penyusun dari Image Viewer yang telah dibuat!

  • ImageViewer
Merupakan kelas yang mengatur hampir semua tampilan di program, menerapkan filter-filter dan fitur-fitur lain yang sudah kita set. Dalam ImageViewer juga lah terdapat program untuk mengambil file image yang ada di komputer kita masing-masing serta untuk menyimpan file yang sudah kita beri filter maupun fitur. Fitur-fitur yang saya tambahkan ada 5, yaitu smaller, larger, rotate, addtext, dan reset.

  • Filter
Merupakan kelas parent dari kelas filter lainnya.

  • ImageFileManager
Kelas yang mengatur aturan-aturan dalam pengambilan file dalam komputer.

  • ImagePanel
Kelas yang berperan sebagai "kanvas" dalam program.

  • OFImage
Kelas yang berperan untuk memproses gambar setelah gambar tersebut diproses oleh ImagePanel serta dapat memanipulasi gambar baik dari segi warna, ukuran gambar, dan yang lainnya.

  • Seluruh filter
Saya menggunakan 11 kelas filter untuk dapat memberikan efek kepada gambar.

Implementasi dalam Program!

  • ImageViewer

 import java.awt.*;
 import java.awt.event.*;
 import java.awt.image.*;
 import javax.swing.*;
 import javax.swing.border.*;
 import java.io.File;
 import java.util.List;
 import java.util.ArrayList;
 import java.util.Iterator;
 import java.awt.Color;
 import java.awt.Font;
 import java.awt.Graphics;
 import java.awt.image.BufferedImage;
 import java.io.File;
 //from www. j av a 2 s. c o m
 import javax.imageio.ImageIO;
 public class ImageViewer
 {
   // static fields:
   private static final String VERSION = "Version 3.0";
   private static JFileChooser fileChooser = new JFileChooser(System.getProperty("user.dir"));
   // fields:
   private JFrame frame;
   private ImagePanel imagePanel;
   private JLabel filenameLabel;
   private JLabel statusLabel;
   private JButton smallerButton;
   private JButton largerButton;
   private JButton addtextButton;
   private JButton rotateButton;
   private JButton resetButton;
   private OFImage currentImage;
   private OFImage temp;
   private File selectedFile;
   private List<Filter> filters;
   /**
    * Create an ImageViewer and display its GUI on screen.
    */
   public ImageViewer()
   {
     currentImage = null;
     filters = createFilters();
     makeFrame();
   }
   // ---- implementation of menu functions ----
   /**
    * Open function: open a file chooser to select a new image file,
    * and then display the chosen image.
    */
   private void openFile()
   {
     int returnVal = fileChooser.showOpenDialog(frame);
     if(returnVal != JFileChooser.APPROVE_OPTION) {
       return; // cancelled
     }
     selectedFile = fileChooser.getSelectedFile();
     currentImage = ImageFileManager.loadImage(selectedFile);
     if(currentImage == null) {  // image file was not a valid image
       JOptionPane.showMessageDialog(frame,
           "The file was not in a recognized image file format.",
           "Image Load Error",
           JOptionPane.ERROR_MESSAGE);
       return;
     }
     imagePanel.setImage(currentImage);
     setButtonsEnabled(true);
     showFilename(selectedFile.getPath());
     showStatus("File loaded.");
     frame.pack();
   }
   /**
    * Close function: close the current image.
    */
   private void close()
   {
     currentImage = null;
     imagePanel.clearImage();
     showFilename(null);
     setButtonsEnabled(false);
   }
   private void addText()
   {
     Graphics graphics = currentImage.getGraphics();
     graphics.fillRect(0, 0, 250, 50);
     graphics.setColor(Color.BLACK);
     graphics.setFont(new Font("Arial Black", Font.BOLD, 20));
     graphics.drawString("add text berhasil", 10, 25);
     imagePanel.setImage(currentImage);
   }
   /**
    * Save As function: save the current image to a file.
    */
   private void saveAs()
   {
     if(currentImage != null) {
       int returnVal = fileChooser.showSaveDialog(frame);
       if(returnVal != JFileChooser.APPROVE_OPTION) {
         return; // cancelled
       }
       File selectedFile = fileChooser.getSelectedFile();
       ImageFileManager.saveImage(currentImage, selectedFile);
       showFilename(selectedFile.getPath());
     }
   }
   private void Reset()
   {
     if(currentImage != null) {
       temp = ImageFileManager.loadImage(selectedFile);
       currentImage = temp;
       imagePanel.setImage(currentImage);
       frame.pack();
     }
   }
   private void rotate(int x)
   {
     if(currentImage != null)
     {
       double sin = Math.abs(Math.sin(Math.toRadians(x)));
       double cos = Math.abs(Math.cos(Math.toRadians(x)));
       int width = currentImage.getWidth();
       int height = currentImage.getHeight();
       int width_n = (int) Math.floor(width*cos + height*sin);
       int height_n = (int) Math.floor(height*cos + width*sin);
       BufferedImage r = new BufferedImage(width_n, height_n, currentImage.getType());  //BufferedImage(int width, int height, int imageType)
       Graphics2D g = r.createGraphics();
       g.translate((width_n-width)/2, (height_n-height)/2);
       g.rotate(Math.toRadians(x), width/2, height/2);
       g.drawImage(currentImage, null, 0, 0);
       g.dispose();
       currentImage=new OFImage(r);
       imagePanel.setImage(currentImage);
     }
   }
   /**
    * Quit function: quit the application.
    */
   private void quit()
   {
     System.exit(0);
   }
   /**
    * Apply a given filter to the current image.
    *
    * @param filter  The filter object to be applied.
    */
   private void applyFilter(Filter filter)
   {
     if(currentImage != null) {
       filter.apply(currentImage);
       frame.repaint();
       showStatus("Applied: " + filter.getName());
     }
     else {
       showStatus("No image loaded.");
     }
   }
   /**
    * 'About' function: show the 'about' box.
    */
   private void showAbout()
   {
     JOptionPane.showMessageDialog(frame,
           "ImageViewer\n" + VERSION,
           "About ImageViewer",
           JOptionPane.INFORMATION_MESSAGE);
   }
   /**
    * Make the current picture larger.
    */
   private void makeLarger()
   {
     if(currentImage != null) {
       // create new image with double size
       int width = currentImage.getWidth();
       int height = currentImage.getHeight();
       OFImage newImage = new OFImage(width * 2, height * 2);
       // copy pixel data into new image
       for(int y = 0; y < height; y++) {
         for(int x = 0; x < width; x++) {
           Color col = currentImage.getPixel(x, y);
           newImage.setPixel(x * 2, y * 2, col);
           newImage.setPixel(x * 2 + 1, y * 2, col);
           newImage.setPixel(x * 2, y * 2 + 1, col);
           newImage.setPixel(x * 2+1, y * 2 + 1, col);
         }
       }
       currentImage = newImage;
       imagePanel.setImage(currentImage);
       frame.pack();
     }
   }
   /**
    * Make the current picture smaller.
    */
   private void makeSmaller()
   {
     if(currentImage != null) {
       // create new image with double size
       int width = currentImage.getWidth() / 2;
       int height = currentImage.getHeight() / 2;
       OFImage newImage = new OFImage(width, height);
       // copy pixel data into new image
       for(int y = 0; y < height; y++) {
         for(int x = 0; x < width; x++) {
           newImage.setPixel(x, y, currentImage.getPixel(x * 2,y * 2));
         }
       }
       currentImage = newImage;
       imagePanel.setImage(currentImage);
       frame.pack();
     }
   }
   // ---- support methods ----
   /**
    * Show the file name of the current image in the fils display label.
    * 'null' may be used as a parameter if no file is currently loaded.
    *
    * @param filename The file name to be displayed, or null for 'no file'.
    */
   private void showFilename(String filename)
   {
     if(filename == null) {
       filenameLabel.setText("No file displayed.");
     }
     else {
       filenameLabel.setText("File: " + filename);
     }
   }
   /**
    * Show a message in the status bar at the bottom of the screen.
    * @param text The message to be displayed.
    */
   private void showStatus(String text)
   {
     statusLabel.setText(text);
   }
   /**
    * Enable or disable all toolbar buttons.
    *
    * @param status 'true' to enable the buttons, 'false' to disable.
    */
   private void setButtonsEnabled(boolean status)
   {
     smallerButton.setEnabled(status);
     largerButton.setEnabled(status);
     rotateButton.setEnabled(status);
     addtextButton.setEnabled(status);
     resetButton.setEnabled(status);
   }
   /**
    * Create a list with all the known filters.
    * @return The list of filters.
    */
   private List<Filter> createFilters()
   {
     List<Filter> filterList = new ArrayList<Filter>();
     filterList.add(new DarkerFilter("Darker"));
     filterList.add(new LighterFilter("Lighter"));
     filterList.add(new ThresholdFilter("Threshold"));
     filterList.add(new FishEyeFilter("Fish Eye"));
     filterList.add(new InvertFilter("Invert"));
     filterList.add(new GrayScaleFilter("Grayscale"));
     filterList.add(new SolarizeFilter("Solarize"));
     filterList.add(new MirrorFilter("Mirror"));
     filterList.add(new SmoothFilter("Smooth"));
     filterList.add(new PixelizeFilter("Pixelize"));
     filterList.add(new EdgeFilter("Edge"));
     return filterList;
   }
   // ---- swing stuff to build the frame and all its components ----
   /**
    * Create the Swing frame and its content.
    */
   private void makeFrame()
   {
     frame = new JFrame("ImageViewer");
     JPanel contentPane = (JPanel)frame.getContentPane();
     contentPane.setBorder(new EmptyBorder(6, 6, 6, 6));
     makeMenuBar(frame);
     // Specify the layout manager with nice spacing
     contentPane.setLayout(new BorderLayout(6, 6));
     // Create the image pane in the center
     imagePanel = new ImagePanel();
     imagePanel.setBorder(new EtchedBorder());
     contentPane.add(imagePanel, BorderLayout.CENTER);
     // Create two labels at top and bottom for the file name and status message
     filenameLabel = new JLabel();
     contentPane.add(filenameLabel, BorderLayout.NORTH);
     statusLabel = new JLabel(VERSION);
     contentPane.add(statusLabel, BorderLayout.SOUTH);
     // Create the toolbar with the buttons
     JPanel toolbar = new JPanel();
     toolbar.setLayout(new GridLayout(0, 1));
     smallerButton = new JButton("Smaller");
     smallerButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { makeSmaller(); }
               });
     toolbar.add(smallerButton);
     largerButton = new JButton("Larger");
     largerButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { makeLarger(); }
               });
     toolbar.add(largerButton);
     rotateButton = new JButton("Rotate");
     rotateButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { rotate(90); }
               });
     toolbar.add(rotateButton);
     addtextButton = new JButton("Add Text");
     addtextButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { addText(); }
               });
     toolbar.add(addtextButton);
     resetButton = new JButton("Reset Picture");
     resetButton.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { Reset(); }
               });
     toolbar.add(resetButton);
     // Add toolbar into panel with flow layout for spacing
     JPanel flow = new JPanel();
     flow.add(toolbar);
     contentPane.add(flow, BorderLayout.WEST);
     // building is done - arrange the components
     showFilename(null);
     setButtonsEnabled(false);
     frame.pack();
     // place the frame at the center of the screen and show
     Dimension d = Toolkit.getDefaultToolkit().getScreenSize();
     frame.setLocation(d.width/2 - frame.getWidth()/2, d.height/2 - frame.getHeight()/2);
     frame.setVisible(true);
   }
   /**
    * Create the main frame's menu bar.
    *
    * @param frame  The frame that the menu bar should be added to.
    */
   private void makeMenuBar(JFrame frame)
   {
     final int SHORTCUT_MASK =
       Toolkit.getDefaultToolkit().getMenuShortcutKeyMask();
     JMenuBar menubar = new JMenuBar();
     frame.setJMenuBar(menubar);
     JMenu menu;
     JMenuItem item;
     // create the File menu
     menu = new JMenu("File");
     menubar.add(menu);
     item = new JMenuItem("Open...");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_O, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { openFile(); }
               });
     menu.add(item);
     item = new JMenuItem("Close");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_W, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { close(); }
               });
     menu.add(item);
     menu.addSeparator();
     item = new JMenuItem("Save As...");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_S, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { saveAs(); }
               });
     menu.add(item);
     menu.addSeparator();
     item = new JMenuItem("Quit");
       item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_Q, SHORTCUT_MASK));
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { quit(); }
               });
     menu.add(item);
     // create the Filter menu
     menu = new JMenu("Filter");
     menubar.add(menu);
     for(final Filter filter : filters) {
       item = new JMenuItem(filter.getName());
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) {
                   applyFilter(filter);
                 }
               });
        menu.add(item);
      }
     // create the Help menu
     menu = new JMenu("Help");
     menubar.add(menu);
     item = new JMenuItem("About ImageViewer...");
       item.addActionListener(new ActionListener() {
                 public void actionPerformed(ActionEvent e) { showAbout(); }
               });
     menu.add(item);
   }
 }

  • ImageFileManager

 import java.awt.image.*;
 import javax.imageio.*;
 import java.io.*;
 public class ImageFileManager
 {
   // A constant for the image format that this writer uses for writing.
   // Available formats are "jpg" and "png".
   private static final String IMAGE_FORMAT = "jpg";
   /**
    * Read an image file from disk and return it as an image. This method
    * can read JPG and PNG file formats. In case of any problem (e.g the file
    * does not exist, is in an undecodable format, or any other read error)
    * this method returns null.
    *
    * @param imageFile The image file to be loaded.
    * @return      The image object or null is it could not be read.
    */
   public static OFImage loadImage(File imageFile)
   {
     try {
       BufferedImage image = ImageIO.read(imageFile);
       if(image == null || (image.getWidth(null) < 0)) {
         // we could not load the image - probably invalid file format
         return null;
       }
       return new OFImage(image);
     }
     catch(IOException exc) {
       return null;
     }
   }
   /**
    * Write an image file to disk. The file format is JPG. In case of any
    * problem the method just silently returns.
    *
    * @param image The image to be saved.
    * @param file  The file to save to.
    */
   public static void saveImage(OFImage image, File file)
   {
     try {
       ImageIO.write(image, IMAGE_FORMAT, file);
     }
     catch(IOException exc) {
       return;
     }
   }
 }

  • ImagePanel

     import java.awt.*;
 import javax.swing.*;
 import java.awt.image.*;
 public class ImagePanel extends JComponent
 {
   // The current width and height of this panel
   private int width, height;
   // An internal image buffer that is used for painting. For
   // actual display, this image buffer is then copied to screen.
   private OFImage panelImage;
   /**
    * Create a new, empty ImagePanel.
    */
   public ImagePanel()
   {
     width = 360;  // arbitrary size for empty panel
     height = 240;
     panelImage = null;
   }
   /**
    * Set the image that this panel should show.
    *
    * @param image The image to be displayed.
    */
   public void setImage(OFImage image)
   {
     if(image != null) {
       width = image.getWidth();
       height = image.getHeight();
       panelImage = image;
       repaint();
     }
   }
   /**
    * Clear the image on this panel.
    */
   public void clearImage()
   {
     Graphics imageGraphics = panelImage.getGraphics();
     imageGraphics.setColor(Color.LIGHT_GRAY);
     imageGraphics.fillRect(0, 0, width, height);
     repaint();
   }
   // The following methods are redefinitions of methods
   // inherited from superclasses.
   /**
    * Tell the layout manager how big we would like to be.
    * (This method gets called by layout managers for placing
    * the components.)
    *
    * @return The preferred dimension for this component.
    */
   public Dimension getPreferredSize()
   {
     return new Dimension(width, height);
   }
   /**
    * This component needs to be redisplayed. Copy the internal image
    * to screen. (This method gets called by the Swing screen painter
    * every time it want this component displayed.)
    *
    * @param g The graphics context that can be used to draw on this component.
    */
   public void paintComponent(Graphics g)
   {
     Dimension size = getSize();
     g.clearRect(0, 0, size.width, size.height);
     if(panelImage != null) {
       g.drawImage(panelImage, 0, 0, null);
     }
   }
 }

  • OFImage

 import java.awt.*;
 import java.awt.image.*;
 import javax.swing.*;
 public class OFImage extends BufferedImage
 {
   /**
    * Create an OFImage copied from a BufferedImage.
    * @param image The image to copy.
    */
   public OFImage(BufferedImage image)
   {
      super(image.getColorModel(), image.copyData(null),
         image.isAlphaPremultiplied(), null);
   }
   /**
    * Create an OFImage with specified size and unspecified content.
    * @param width The width of the image.
    * @param height The height of the image.
    */
   public OFImage(int width, int height)
   {
     super(width, height, TYPE_INT_RGB);
   }
   /**
    * Set a given pixel of this image to a specified color. The
    * color is represented as an (r,g,b) value.
    * @param x The x position of the pixel.
    * @param y The y position of the pixel.
    * @param col The color of the pixel.
    */
   public void setPixel(int x, int y, Color col)
   {
     int pixel = col.getRGB();
     setRGB(x, y, pixel);
   }
   /**
    * Get the color value at a specified pixel position.
    * @param x The x position of the pixel.
    * @param y The y position of the pixel.
    * @return The color of the pixel at the given position.
    */
   public Color getPixel(int x, int y)
   {
     int pixel = getRGB(x, y);
     return new Color(pixel);
   }
 }

  • Filter

 public abstract class Filter
 {
   private String name;
   /**
    * Create a new filter with a given name.
    * @param name The name of the filter.
    */
   public Filter(String name)
   {
     this.name = name;
   }
   /**
    * Return the name of this filter.
    *
    * @return The name of this filter.
    */
   public String getName()
   {
     return name;
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public abstract void apply(OFImage image);
 }


  • EdgeFilter

 import java.awt.Color;
 import java.util.List;
 import java.util.ArrayList;
 public class EdgeFilter extends Filter
 {
   private static final int TOLERANCE = 20;
   private OFImage original;
   private int width;
   private int height;
   /**
    * Constructor for objects of class EdgeFilter.
    * @param name The name of the filter.
    */
   public EdgeFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     original = new OFImage(image);
     width = original.getWidth();
     height = original.getHeight();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, edge(x, y));
       }
     }
   }
   /**
    * Return a new color that is the smoothed color of a given
    * position. The "smoothed color" is the color value that is the
    * average of this pixel and all the adjacent pixels.
    * @param xpos The x position of the pixel.
    * @param ypos The y position of the pixel.
    * @return The smoothed color.
    */
   private Color edge(int xpos, int ypos)
   {
     List<Color> pixels = new ArrayList<Color>(9);
     for(int y = ypos-1; y <= ypos+1; y++) {
       for(int x = xpos-1; x <= xpos+1; x++) {
         if( x >= 0 && x < width && y >= 0 && y < height ) {
           pixels.add(original.getPixel(x, y));
         }
       }
     }
     return new Color(255 - diffRed(pixels), 255 - diffGreen(pixels), 255 - diffBlue(pixels));
   }
   /**
    * @param pixels The list of pixels to be averaged.
    * @return The average of all the red values in the given list of pixels.
    */
   private int diffRed(List<Color> pixels)
   {
     int max = 0;
     int min = 255;
     for(Color color : pixels) {
       int val = color.getRed();
       if(val > max) {
         max = val;
       }
       if(val < min) {
         min = val;
       }
     }
     int difference = max - min - TOLERANCE;
     if(difference < 0) {
       difference = 0;
     }
     return difference;
   }
   /**
    * @param pixels The list of pixels to be averaged.
    * @return The average of all the green values in the given list of pixels.
    */
   private int diffGreen(List<Color> pixels)
   {
     int max = 0;
     int min = 255;
     for(Color color : pixels) {
       int val = color.getGreen();
       if(val > max) {
         max = val;
       }
       if(val < min) {
         min = val;
       }
     }
     int difference = max - min - TOLERANCE;
     if(difference < 0) {
       difference = 0;
     }
     return difference;
   }
   /**
    * @param pixels The list of pixels to be averaged.
    * @return The average of all the blue values in the given list of pixels.
    */
   private int diffBlue(List<Color> pixels)
   {
     int max = 0;
     int min = 255;
     for(Color color : pixels) {
       int val = color.getBlue();
       if(val > max) {
         max = val;
       }
       if(val < min) {
         min = val;
       }
     }
     int difference = max - min - TOLERANCE;
     if(difference < 0) {
       difference = 0;
     }
     return difference;
   }
 }


  • InvertFilter

 import java.awt.Color;
 public class InvertFilter extends Filter
 {
   /**
    * Constructor for objects of class InvertFilter.
    * @param name The name of the filter.
    */
   public InvertFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         Color pix = image.getPixel(x, y);
         image.setPixel(x, y, new Color(255 - pix.getRed(),
                         255 - pix.getGreen(),
                         255 - pix.getBlue()));
       }
     }
   }
 }

  • FishEyeFilter

 import java.awt.Color;
 public class FishEyeFilter extends Filter
 {
   // constants:
   private final static int SCALE = 20;  // this defines the strenght of the filter
   private final static double TWO_PI = 2 * Math.PI;
   /**
    * Constructor for objects of class LensFilter.
    * @param name The name of the filter.
    */
   public FishEyeFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     OFImage original = new OFImage(image);
     int[] xa = computeXArray(width);
     int[] ya = computeYArray(height);
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, original.getPixel(x + xa[x], y + ya[y]));
       }
     }
   }
   /**
    * Compute and return an array of horizontal offsets for each pixel column.
    * These can then be applied as the horizontal offset for each pixel.
    */
   private int[] computeXArray(int width)
   {
     int[] xArray = new int[width];
     for(int i=0; i < width; i++) {
       xArray[i] = (int)(Math.sin( ((double)i / width) * TWO_PI) * SCALE);
     }
     return xArray;
   }
   /**
    * Compute and return an array of vertical offsets for each pixel row.
    * These can then be applied as the vertical offset for each pixel.
    */
   private int[] computeYArray(int height)
   {
     int[] yArray = new int[height];
     for(int i=0; i < height; i++) {
       yArray[i] = (int)(Math.sin( ((double)i / height) * TWO_PI) * SCALE);
     }
     return yArray;
   }
 }

  • SmoothFilter

 import java.awt.Color;
 import java.util.List;
 import java.util.ArrayList;
 public class SmoothFilter extends Filter
 {
   private OFImage original;
   private int width;
   private int height;
   /**
    * Constructor for objects of class SmoothFilter.
    * @param name The name of the filter.
    */
   public SmoothFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     original = new OFImage(image);
     width = original.getWidth();
     height = original.getHeight();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, smooth(x, y));
       }
     }
   }
   /**
    * Return a new color that is the smoothed color of a given
    * position. The "smoothed color" is the color value that is the
    * average of this pixel and all the adjacent pixels.
    * @param xpos The xposition of the pixel.
    * @param ypos The yposition of the pixel.
    * @return The smoothed color.
    */
   private Color smooth(int xpos, int ypos)
   {
     List<Color> pixels = new ArrayList<Color>(9);
     for(int y = ypos - 1; y <= ypos + 1; y++) {
       for(int x = xpos - 1; x <= xpos + 1; x++) {
         if( x >= 0 && x < width && y >= 0 && y < height )
           pixels.add(original.getPixel(x, y));
       }
     }
     return new Color(avgRed(pixels), avgGreen(pixels), avgBlue(pixels));
   }
   /**
    * @param pixels The list of pixels.
    * @return The average of all the red values in the given list of pixels.
    */
   private int avgRed(List<Color> pixels)
   {
     int total = 0;
     for(Color color : pixels) {
       total += color.getRed();
     }
     return total / pixels.size();
   }
   /**
    * @param pixels The list of pixels.
    * @return The average of all the green values in the given list of pixels.
    */
   private int avgGreen(List<Color> pixels)
   {
     int total = 0;
     for(Color color : pixels) {
       total += color.getGreen();
     }
     return total / pixels.size();
   }
   /**
    * @param pixels The list of pixels.
    * @return The average of all the blue values in the given list of pixels.
    */
   private int avgBlue(List<Color> pixels)
   {
     int total = 0;
     for(Color color : pixels) {
       total += color.getBlue();
     }
     return total / pixels.size();
   }
 }

  • PixelizeFilter

 import java.awt.Color;
 public class PixelizeFilter extends Filter
 {
   /**
    * Constructor for objects of class PixelizeFilter.
    * @param name The name of the filter.
    */
   public PixelizeFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     final int PIXEL_SIZE = 5;
     int width = image.getWidth();
     int height = image.getHeight();
     for(int y = 0; y < height; y += PIXEL_SIZE) {
       for(int x = 0; x < width; x += PIXEL_SIZE) {
         Color pix = image.getPixel(x, y);
         for(int dy = y; dy < y + PIXEL_SIZE; dy++) {
           for(int dx = x; dx < x + PIXEL_SIZE; dx++) {
             if( dx < width && dy < height )
               image.setPixel(dx, dy, pix);
           }
         }
       }
     }
   }
 }

  • MirrorFilter

 import java.awt.Color;
 public class MirrorFilter extends Filter
 {
      /**
       * Constructor for objects of class MirrorFilter.
    * @param name The name of the filter.
       */
      public MirrorFilter(String name)
   {
     super(name);
      }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width / 2; x++) {
         Color left = image.getPixel(x, y);
         image.setPixel(x, y, image.getPixel(width - 1 - x, y));
         image.setPixel(width - 1 - x, y, left);
       }
     }
   }
 }

  • SolarizeFilter

 import java.awt.Color;
 public class SolarizeFilter extends Filter
 {
   /**
    * Constructor for objects of class Solarize.
    * @param name The name of the filter.
    */
   public SolarizeFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         Color pix = image.getPixel(x, y);
         int red = pix.getRed();
         if(red <= 127) {
           red = 255 - red;
         }
         int green = pix.getGreen();
         if(green <= 127) {
           green = 255 - green;
         }
         int blue = pix.getBlue();
         if(blue <= 127) {
           blue = 255 - blue;
         }
         image.setPixel(x, y, new Color(red, green, blue));
       }
     }
   }
 }

  • GrayScaleFilter

 import java.awt.Color;
 public class GrayScaleFilter extends Filter
 {
      /**
       * Constructor for objects of class GrayScaleFilter.
       * @param name The name of the filter.
       */
      public GrayScaleFilter(String name)
   {
     super(name);
      }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         Color pix = image.getPixel(x, y);
         int avg = (pix.getRed() + pix.getGreen() + pix.getBlue()) / 3;
         image.setPixel(x, y, new Color(avg, avg, avg));
       }
     }
   }
 }

  • DarkerFilter

 public class DarkerFilter extends Filter
 {
   /**
    * Constructor for objects of class DarkerFilter.
    * @param name The name of the filter.
    */
   public DarkerFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, image.getPixel(x, y).darker());
       }
     }
   }
 }

  • LighterFilter

 public class LighterFilter extends Filter
 {
   /**
    * Constructor for objects of class LighterFilter.
    * @param name The name of the filter.
    */
   public LighterFilter(String name)
   {
     super(name);
   }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         image.setPixel(x, y, image.getPixel(x, y).brighter());
       }
     }
   }
 }

  • ThresholdFilter

 import java.awt.Color;
 /**
  * An three-level gray-based threshold filter.
  *
  * @author Michael Kolling and David J Barnes
  * @version 1.0
  */
 public class ThresholdFilter extends Filter
 {
      /**
       * Constructor for objects of class ThresholdFilter.
    * @param name The name of the filter.
       */
      public ThresholdFilter(String name)
   {
     super(name);
      }
   /**
    * Apply this filter to an image.
    *
    * @param image The image to be changed by this filter.
    */
   public void apply(OFImage image)
   {
     int height = image.getHeight();
     int width = image.getWidth();
     for(int y = 0; y < height; y++) {
       for(int x = 0; x < width; x++) {
         Color pixel = image.getPixel(x, y);
         int brightness = (pixel.getRed() + pixel.getBlue() + pixel.getGreen()) / 3;
         if(brightness <= 85) {
           image.setPixel(x, y, Color.BLACK);
         }
         else if(brightness <= 170) {
           image.setPixel(x, y, Color.GRAY);
         }
         else {
           image.setPixel(x, y, Color.WHITE);
         }
       }
     }
   }
 }

Maka kita dapat membuka file image yang ada di laptop kita dan kita dapat menambahkan fitur-fitur kepada image tersebut seperti berikut :

Tampilan awal :


Tampilan awal gambar :


Efek Smaller :


Efek Bigger :


Efek Rotate :


Efek Add Text :


Efek Reset Picture :


Filter Darker :


Filter Lighter :


Filter Threshold :


Filter FishEye :


Filter Invert :


Filter GrayScale :


Filter Solarize :


Filter Mirror :


Filter Smooth :


Filter Pixelize :


Filter Edge :


Comments

Popular posts from this blog

APSI 1 - Analisa Sistem Informasi Lazada

Tugas 3 PBKK
